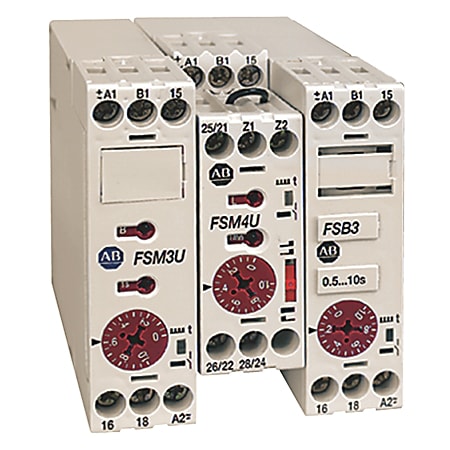

**UTGÅTT - TIMER OFF-DELAY 0,05s..60t, 24-240VAC/24VDC

Produktnummer: 700-FSB3UU23
Produktstatus:


inkl. mva.

700-FS General Purpose High Performance Timing Relay, Off-Delay, 0.05 seconds to 60 hours, 1 N.O. (Changeover - SPDT), 24-48V DC / 24-240V 50/60Hz

High Performance Timing Relay, Off-Delay, 0.05 seconds to 60 hours, 24-48V DC / 24-240V 50/60Hz, 1 Changeover Contact (SPDT), No Hazardous Location Cert

Egenskaper for produkt/familie

  • Includes adjustable function and timing range timing relays
  • Provides coil surge protection
  • Provides panel and DIN rail mounting without cost of socket
  • Offers 22.5 mm wide multi-function or single function options
Spesifikasjoner
Timing Function Off-Delay
Contact Configuration 1 C/O ( Changeover - SPDT)
Timing Range 0.05 seconds to 60 hours
Control Voltage 24-48V DC / 24-240V 50/60Hz
Note The 700-FS can be panel or DIN rail mounted. Allowing at least 5 mm of open space on each side of the 700-FS for proper ventilation, should result in best long term performance.
Opprinnelsesland CZ
Tolltariffnummer 85364900
Lengde 10.897
Høyde 2.692
Livssyklus Active
