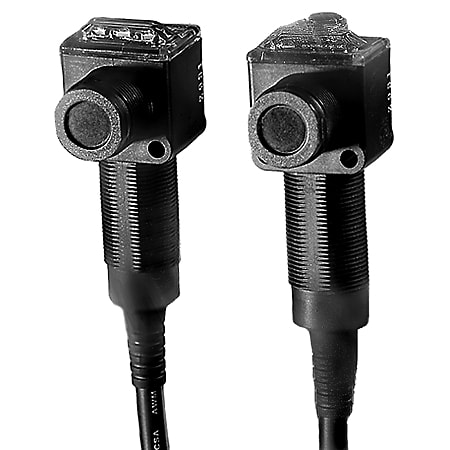

RightSound Ultrasonic Sensor Emitter
Produktnummer: 873E-EDZZ0750F4
Produktstatus:
inkl. mva.
RightSound Ultrasonic Sensor, Emitter, 4 Pin Micro QD on Pigtail
Egenskaper for produkt/familie
- 80;889D-F4AC-5
- Output logic switchable via polarity of receiver power wiring
- NPN (sinking) and PNP (sourcing) outputs
- Highly immune to ambient sonic and electrical noise
- Applications include:
- Highly visible 360° status indicators
- Short circuit, overload, false pulse, transient noise and reverse polarity protection
- 1200 psi washdown, NEMA 4X, 6P and IP67 water ingress standards
| Spesifikasjoner | |
|---|---|
| Barrel Diameter | 18mm |
| Family Style | Bulletin 873E RightSound 18mm Right Angle |
| Sensing Range | 50mm to 750mm |
| Sensing Mode | Transmitted Beam Emitter |
| Termination Type | Pigtail w/Micro QD (DC) |
| Output Configuration | NPN/PNP (NO or NC) |
| Enclosure | Plastic |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Connection | Pigtail w/Micro QD (DC) |
| Sensing Distance | 50mm to 750mm |
| Output | NPN/PNP (NO or NC) |
| Size | 18mm |
| Model | Bulletin 873E RightSound 18mm Right Angle |
| Lengde | 14.707 |
| Høyde | 2.997 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 873e-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 873e_xdxx0750xx Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: 873E_PH.jpg Filtype: image/png |
Last ned | |
|
2D Dimensional Drawing (DWG/DXF) Filnavn: 873E-xDxx0750xx.dwg Filtype: image/vnd.dwg |
Last ned |
