45MLA, Measuring Light Array, Cascaded, Pair, Pitch 25mm, Sensing Height 0300mm, Profile Slim 20x15mm
Properties for product/family
- Detects targets with gaps or spaces
- Slim housing profile of 15 x 20 mm (0.6 x 0.8 in.)
- Detects objects regardless of position in sensing field
| Specifications | |
|---|---|
| Please Note | An external controller is required |
| Please Note | Both the standard array and the cascadable array have 500mm / 19in pigtails |
| Please Note | Quantity of 2 Patchcords Required |
| Please Note | Arrays ship as Transmitted Beam Pairs |
| Number of Beams | 12 |
| Sensing Height | 300 mm (11.8 in) |
| Array Type | Cascadable |
| Beam Spacing | 25 mm (0.98 in) |
| Please Note | The 45MLA is a "Three Box System" |
| Please Note | A cascadable 45MLA system includes cascadable arrays and a standard array pair at the end. Configure the end arrays below. |
| Lengde | 37.998 |
| Høyde | 8.992 |
| Livssyklus | Active |
| Data sheet | ||
|---|---|---|
|

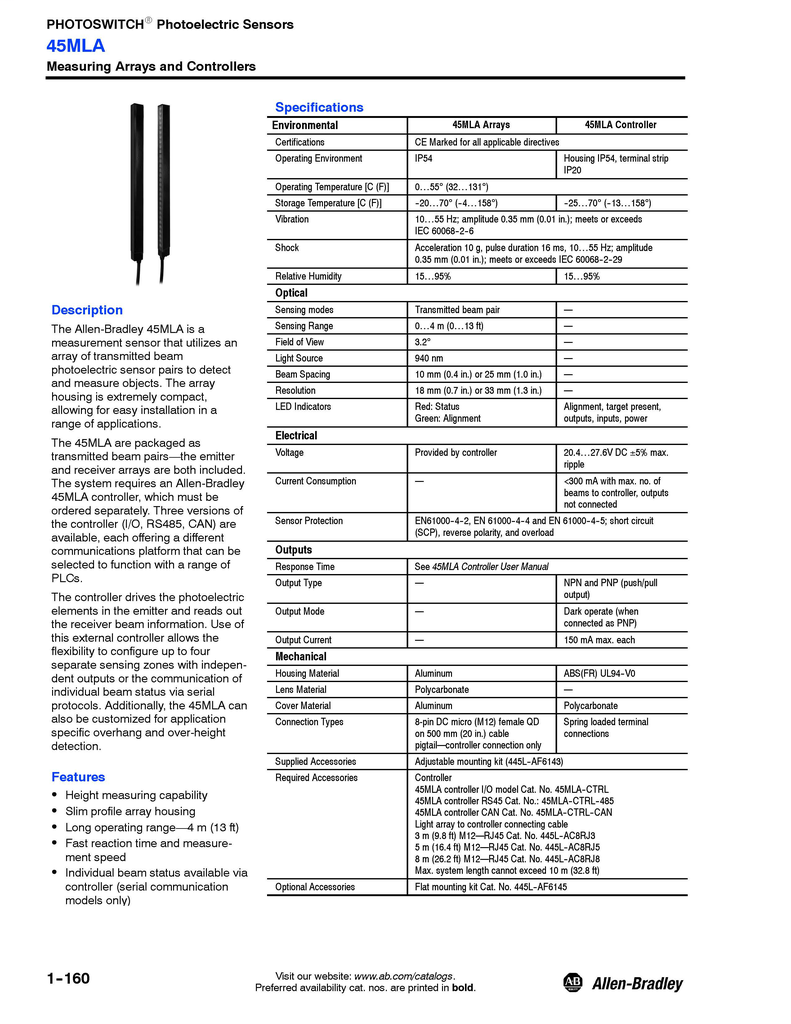

primary_spec_sheet File name: 45MLA_Specs.jpg File type: image/png |
Download |
| Downloads | ||
|---|---|---|
|
Spec Sheet File name: 45MLA_Specs.jpg File type: image/png |
Download | |
|
Approximate Dimensions File name: 45MLA_Dim.jpg File type: image/png |
Download | |
|
Photo File name: 45MLA_both.jpg File type: image/png |
Download | |
|
45MLA Catalog Selection File name: 45MLA%20CatPgs.pdf File type: application/pdf |
Download |
