Advantech Gateways

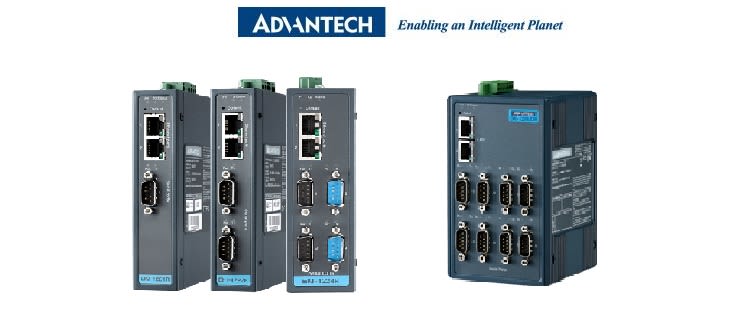

Advantech Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices.

Two independent Ethernet ports and MAC addresses to provide redundancy and reliability. Virtual gateway providing redundancy at the gateway level.

EKI-1221/1222/1224 Series and EKI-1228 allow users to select client or server operation mode for each serial port. In addition to allowing an Ethernet client to control serial servers, they also allow serial client to control Ethernet servers.

EKI Modbus gateway also provides Modbus Data access via 3 different modes simultaneously, transparent mode guarantees the most up to date Modbus data, intelligent cache boots performance, when gateway is accessed by multiple Modbus TCP clients, agent Mode provides the fastest respond time. Use corresponding modes in different applications to achieve performance and availability of Modbus Data.

Sorter

4-port Modbus Gateway

EKI-1224-CE - 4-Port Modbus Gateway
EKI-1224-CE


4-port Modbus Gateway with wide temp & iso

EKI-1224-CI-CE - 4-Port Modbus Gateway with extended temperature range and port to port isolation
EKI-1224CI-CE


4-port Modbus Gateway with wide temp

EKI-1224-I-CE - 4-Port Modbus Gateway with extended temperature range
EKI-1224I-CE


8-port Modbus Gateway

8-Port Modbus Gateway
EKI-1228-DR-AE
